BRADY GA25 UHF RFID ANTENNA EU SMA FEMALE

Nimi 7.5dBic 250 x 250 x 29 mm IP65

ANG00003

Määrä:

Kuvaus

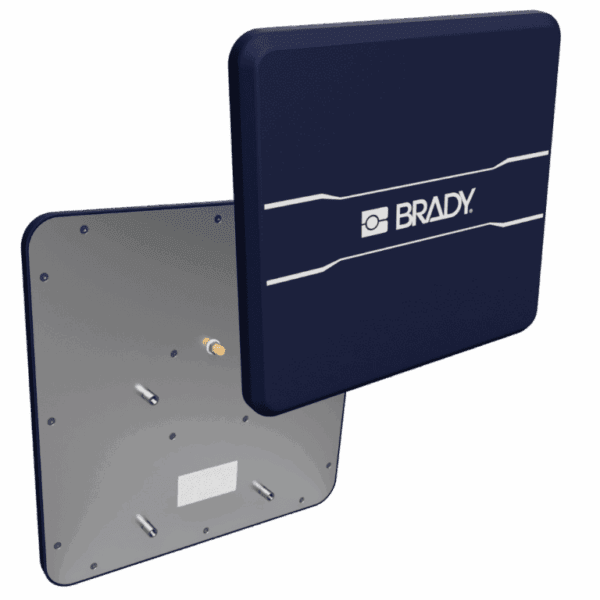

The GA25 antenna

The Brady GA25 is a slim but robust and extremely cost-efficient antenna with circular polarisation. This antenna can be mounted directly on all surfaces, even metal, without compromising UHF RFID reading performance. IP65 ingress protection allows also installation to demanding conditions, dusty and wet.

SUITABLE APPLICATION AREAS

  • Asset tracking
  • Inventory management
  • People or vehicle access control
  • Document tracking
  • RFID gates
  • RFID tunnels



HIGHLIGHTS

  • High gain to achieve the longest RFID reading distance
  • Usable on all surfaces, including metal
  • Good performance in every orientation
  • VESA standard mounting
BRADY GA25 TECHNICAL SPECIFICATIONS
UHF RFID FREQUENCY 865 MHz – 867 MHz
ANTENNA FEATURES 7.5 dBic RHCP Polarization
BEAM WIDTH 65° / 65°
INPUT IMPEDANCE 50 Ω
VSWR <1.5:1
POWER REQUIREMENTS Max 2W input power
FRONT-TO-BACK RATIO 15 dB
AXIAL RATIO <1 dB
EXTERNAL ANTENNA PORT SMA Female connector
SIZE AND WEIGHT DIMENSIONS 250.00 x 250.00 x 28.90 mm WxHxD
WEIGHT 0.56 kg
ENVIRONMENT OPERATING TEMPERATURE -20°C – 55°C
STORAGE TEMPERATURE -40°C – 85°C
INGRESS PROTECTION RATING IP65



Lisätiedot

Paino 1 kg (kilogramma)
×
