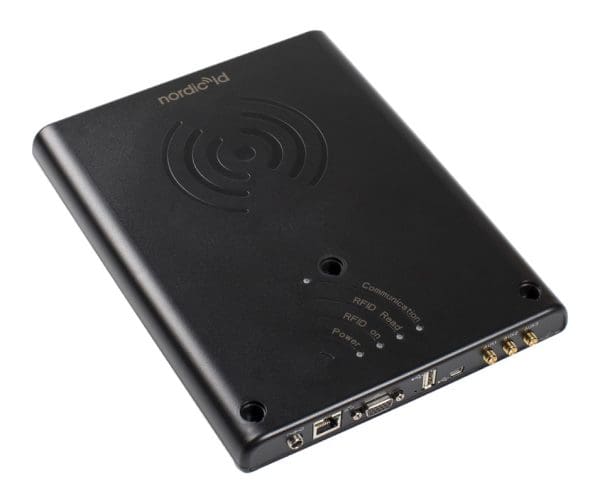

Nordic ID Sampo S2 One Series is a powerful fixed UHF RFID reader with the new NUR2-1W module which is able to read up to 1000 tags per second and offers powerful long-range reading performance. Sampo S2 One Series offers multiple connectivity options, Wlan, Ethernet, Power over Ethernet (PoE), USB and 3G. This versatile reader is suitable for multiple use cases e.g. in POS and various gate options. Its integrated computer, Linux based with 1.2 GHz 64-bit Quad-Core CPU, enables installation and operation of 3rd party applications.
HIGHLIGHTS
• Powerful UHF RFID long-range reading performance
• Integrated Nordic ID NUR2-1W module for increased performance and reading speeds
• Integrated Linux based computer for versatile SW possibilities/development
• Versatile host and device connectivity options
• Avoid cross readings due to high isolation between antenna ports
• One device for EU or US frequency environments: ETSI 865.6-867.6 MHz and FCC 902-928 MHz
Included in the box: Installation kit. Power supply to be ordered separately if not installed with PoE!
TECHNICAL SPECIFICATIONS
| UHF RFID | Supported standard | ISO 18000-63 (EPC Class 1 Gen 2) |
| Frequency band | ETSI 865.6–867.6 MHz and FCC/IC 902–928 MHz | |
| Regulatory | CE ETSI EN 302 208, CE ETSI EN 301 489, FCC part 15.247 IC RSS210, Safety IEC 60950-1 | |
| Max receive sensitivity | -81 dBm | |
| Typical reading speed | Up to 1000 tags/s | |
| Radiated power | Integrated antenna in normal mode: 33dBm (2 W) ERP / 3.3 W EIRP
Integrated antenna in low gain mode down to: 4dBm (2.5mW) ERP / 4mW EIRP |
|
| Integrated antenna features | Wide band antenna which covers ETSI and FCC/IC frequency bands, 8 dBic circular polarized, Beam width 80°, Nominal reading distance 10 m / 33 ft | |
| Conducted power for external antenna ports | 30 dBm (1 W) | |
| External antenna port | 3 pcs. 50 Ω / SMA Female | |
| Isolation between external antenna ports | 35 dBm / typical | |
| PLATFORM | CPU | 1.2GHz 64-bit Quad-Core Cortex-A53 processor |
| Operating system | Debian based embedded Linux | |
| Memory | 1 GB RAM, 4 GB flash | |
| USER INTERFACE | SIM | Mini-SIM |
| Indicators | 4 pcs (programmable) LEDs
Buzzer for sound indications, Capacitive sensor for triggering reading |
|
| CONNECTIVITY | GPIO | 4 inputs, opto isolated, max. 24V
4 outputs, opto isolated, max. 50mA |
| Wireless WAN (optional) | 3G HSPA (B1, B2, B5, B6, B8 and B19)
2G GPRS / EDGE (850, 900, 1800 and 1900 MHz) |
|
| LAN | Ethernet 10/100 Mbit | |
| WLAN (optional) | IEEE 802.11 a/b/g/n, works as an WLAN access point for other Nordic ID readers
Dual band WLAN, supports 2.4 GHz and 5 GHz networks |
|
| USB | USB host, type A
USB device, type B, USB HID class supported |
|
| POWER | External Power Supply | PoE 802.3af or
AC/DC adapter: input 100-240 VAC, 1A, 50-60 Hz / output 24 VDC, 1.25A (EU PSU: ACN00142) |
| Operating Power | 12W PoE, 20 W DC
Note! Wireless LAN and WAN disabled in PoE use |
|
| SIZE AND WEIGHT | Dimensions | (W) 200 x (L) 260 x (H) 25 mm |
| Weight | 810 g | |
| ENVIRONMENT | Environmental sealing | IP20, for indoor use only (IP case available as accessory) |
| Inbox content | Nordic ID Sampo S2 One-series and installation kit (power supply not included) | |
| Operating Temperature | -20 to 55°C | |
| Storage Temperature | -40 to 85°C | |
| Mounting | VESA 75/100 Compatible | |
| SOFTWARE INTERFACE | Data management | Nordic ID Radea |
| Device management | Nordic ID Radea | |
| Firmware update | Via Web management UI and the RESTful service | |
| Management interface | Web management UI and SSH for developers | |
| IP Address configuration | IPv4/IPv6 DHCP or Static IP | |
| API support | NUR API for RFID and RESTful service to access reader configuration | |
| Other protocols | LLRP | |
| Software development | Ready-to-use Nordic ID NUR API that provides full control over the reader
Application can be written with modern programming languages Compatible with existing Nordic ID fixed readers |
| Paino | 1 kg (kilogramma) |
|---|
